Narrow width is required due to part configuration.

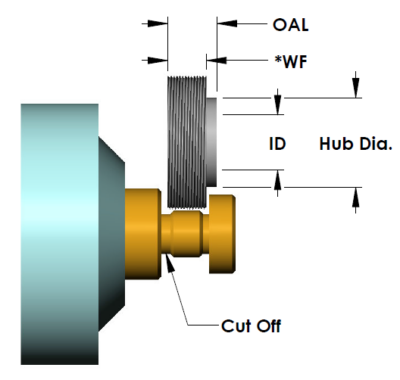

STANDARD: Dimensions as shown.
OPTIONAL: Bronze bushings, left hand threads, additional hub.
| B&S: 83-200 B&S: 83-120/84-100 B&S: 83-122/84-120 B&S: 84-122 |
Detroit: 309-4 Detroit: 309-5 Detroit: 309-6 |
Reed: A2-1210 Reed: A00-54 Reed: A00-86/A0-86 Reed: A0-108/A2-108 |
Salvo: SA-00 Salvo: SA-0/SB-00 Salvo: SA-2/SB-0 Salvo: SB-2 |
| Model | O.A.L. | ID |
|---|---|---|
| WF-2-44 | .250 | .250 |
| WF-2-54 | .3125 | .250 |
| WF-2-66 | .375 | .375 |
| WF-2-86 | .500 | .375 |
| WF-2-88 | .500 | .500 |
| WF-2-106 | .625 | .500 |
| WF-2-1210 | .750 | .625 |
Working Face must be specified when ordering WF-2 style.
