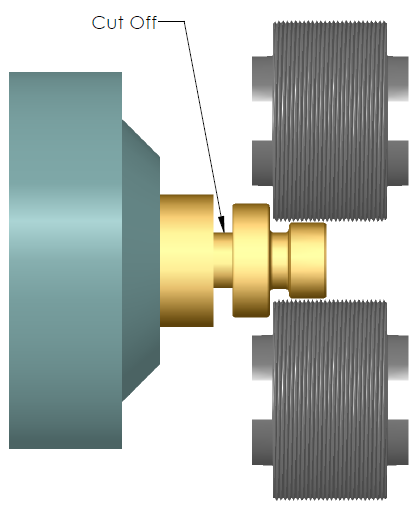

Length of thread on part permits rolls to be reversed (doubling production from each pair of rolls).
STANDARD: Double-drive slots; working face as listed below.
OPTIONAL: Special bevels, machined breakouts, bronze bushings, left hand threads, multiple leads.
| Model | Standard Workface | |
|---|---|---|
| Winter | 125-SA 134-SA 141-SA 151-SA 160-SA 162/163-SA 170-SA 172/173-SA |
0.480 0.500 0.750 0.750 1.417 1.135 1.417 1.135 |
| Davenport | 1421-SA 1431-SA 1448-SA |
0.500 0.500 0.500 |
| Landis | 14GA 18GA 20GA 22GA 24GA |
0.500 0.750 0.813 1.000 1.250 |
| Reed | B-5 B-8 B-10 (500-G2A) B-13 (750-G2A) B-18 (1000-G2A) B-36 |
— 0.437 0.500 0.750 1.000 1.000 |
| Detroit | 76000 (0-375) 76100 (6-625) 76200 (10-750) 76300 (30-1000) 76400 (25-1125) |
0.344 0.500 0.688 0.688 0.938 |
| Salvo | CBL BBL DBL |
0.750 0.937 1.187 |
