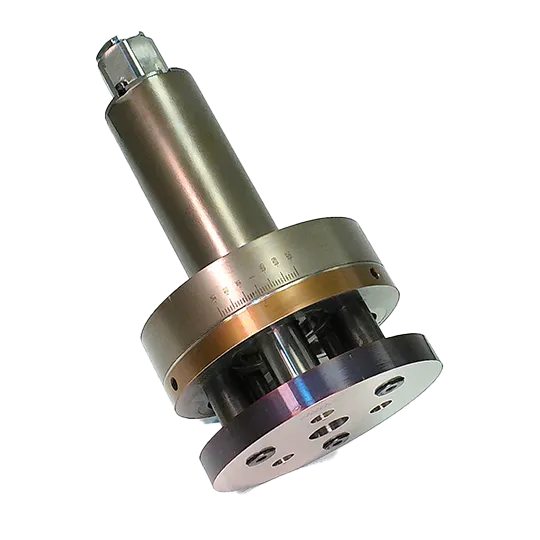

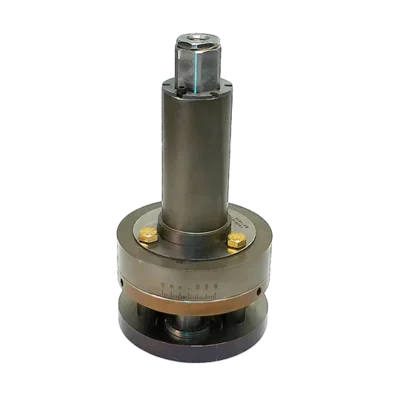

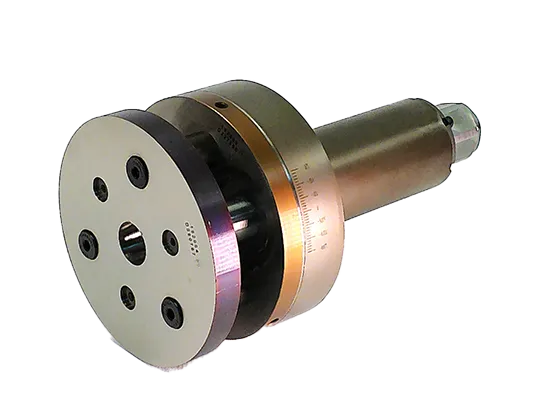

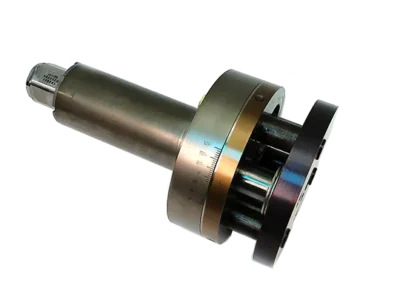

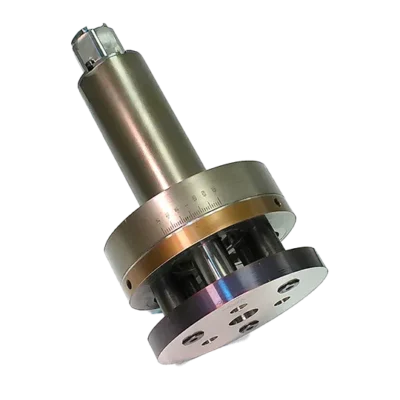

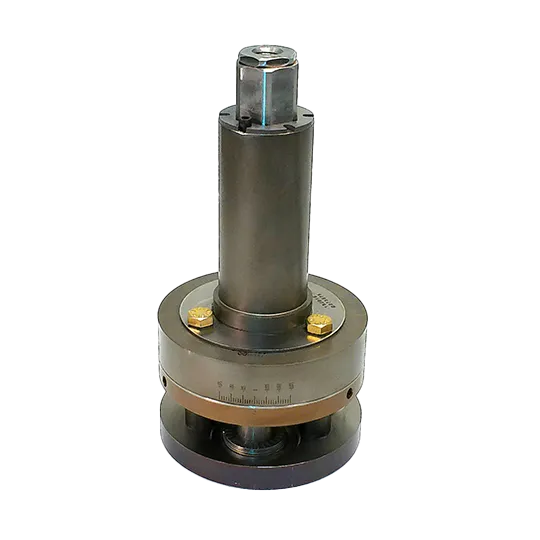

Precision Involute Knurl / Spline

Capacity of precision involute knurls includes most parts in the following ranges:

Knurl Major Diameter Ø0.630” min to Ø1.250” max
Knurl Lengths up to: .813” all diameters
Typical Involute Pitches 16 diametral pitch to 128 diametral pitch

*Note: Not all pitches can be rolled on all size parts without interference. Contact CJWinter for an evaluation of your application.
