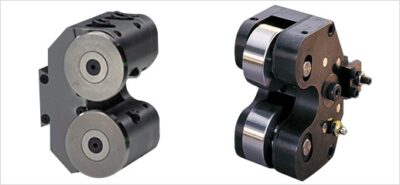

Detroit Style Attachments

The Detroit Style Attachment offers an alternative to our customers who prefer a traditional tangential rolling style. Completely re-engineered to the closest of tolerances, our Detroit line is second to none in quality and reliability. The Detroit Style Outboard Attachments have been re-engineered to provide the highest quality thread rolling when stock clearance is critical. Designed to roll threads close to the shoulder or parts that are being chucked, the Outboard Attachment is unsurpassed in thread quality and ease of setup.
Availability Dimensions

The Detroit Style Attachment offers an alternative to our customers who prefer a traditional tangential rolling style.

Completely re-engineered to the closest of tolerances, our Detroit line is second to none in quality and reliability. The Detroit Style Outboard Attachments have been re-engineered to provide the highest quality thread rolling when stock clearance is critical. Designed to roll threads close to the shoulder or parts that are being chucked, the Outboard Attachment is unsurpassed in thread quality and ease of setup.

Availability Dimensions

Availability

76200 76300 76400 77300
Brown & Sharpe
x
Cono-Matic
x
x
x
x
Euroturn
Davenport
x
Gildemeister
Green Lee
x
x
x
Hardinge
Hydromat
Index
Mitsubishi
Mori-Say
National ACME
x
x
x
x
New Britain
x
x
x
x
Schutte
Traub
Tornos Bechler
Warner Swasey
x
x
x
Wickman
ZPS

Dimensions

A B C D E F G H I
76200 .438 1.000 2.313 3.875 1.938 .625 2.500 1.563 1.500
76300 .438 1.000 2.313 4.500 2.250 .688 2.635 1.780 1.500
76400 .563 1.250 2.813 5.875 2.938 .875 2.813 2.063 2.500
77300 NA .875 4.375 5.875 2.938 .875 2.813 2.000 2.500

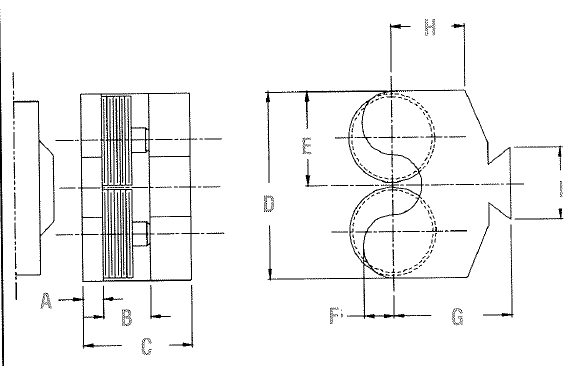

Detroit (76200, 76300, 76400)

Detroit (6200, 76300, 76400

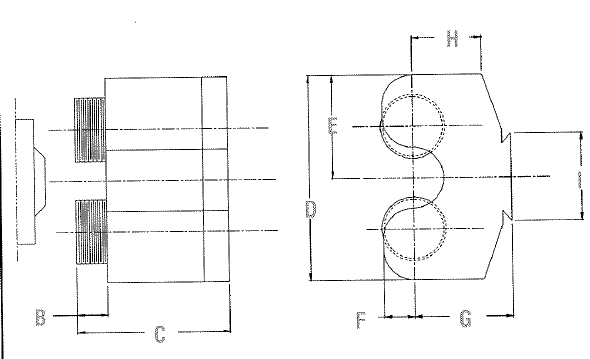

Detroit Outboard (77300)

Detroit Outboard 77300
