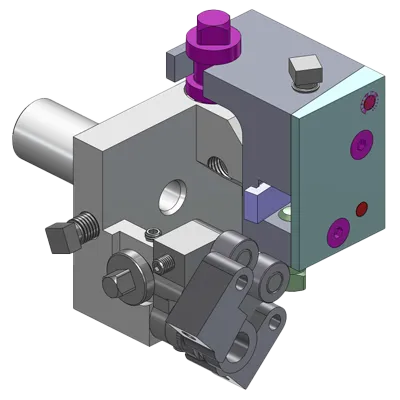

2785-1-SA Box Tool Holder

Turning Holder with Stock Stop and Support Rolls

The turning capacity of this box tool holder is .140 to .344 diameter by 2.50 long or .344 to .500 diameter by 1.50 long. Provision is made for a .375 square turning tool, which can be set .015 ahead of rolls or .110 behind the rolls. The holder is equipped with a stock stop plate for use in the first position, but may be used in any position. Two sets of rollers are furnished for the roller supports. Provision is made for a .375 diameter shank drill or center.
