160/162-SA Tangential Series

160/162-SA Tangential Series Availability

160-SA
162-SA
160-SA-1
162-SA-1
160-SA-2
162-SA-2
160-SA-3
162-SA-3
Brown & Sharpe
x
Cono-Matic
Euroturn
x
Davenport
Gildemeister
x
Green Lee
Hardinge
Hydromat
Index
x
Mitsubishi
Mori-Say
x
National ACME
x
New Britain
x
Schutte
x
Traub
Tornos Bechler
x
Warner Swasey
x
Wickman
x
ZPS
x

160/162-SA Tangential Series Capacities

10-32 to 1 7/8-18 1/8-27 NPT to 1 ½-11 ½ NPT M6 x 1.0 to
M45 x 3.0
1/16-28 BSPP to
1 ½-11 BSPP
1/16-28 BSPT to
1 ½-11 BSPT
1/8-27 NPSM to
1 ½-11 ½ NPSM

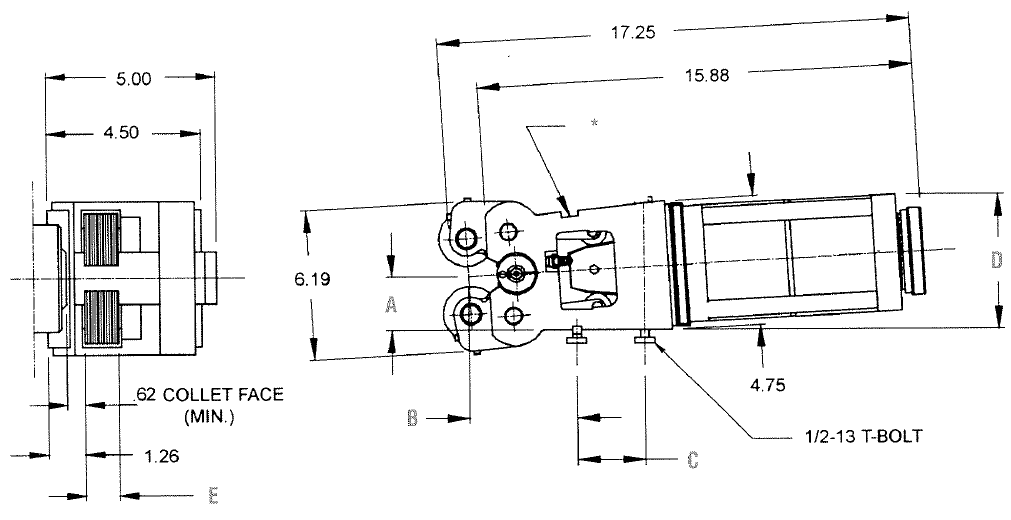

160/162-SA Tangential Series Dimensions

160-SA Series

A B C D E
160-SA 2.250 3.690 NOM 2.000 MIN
3.000 MAX
4.500 1.656
160-SA-1 2.125 3.690 NOM 2.500 4.940 1.656
160-SA-2 2.000 4.000 NOM 2.060 4.940 1.656
160-SA-3 2.000 4.000 NOM 2.300 4.940 1.656

160/162-SA Tangential Series

Dimensions

162-SA Series

A B C D E
162-SA 2.250 3.690 NOM 2.000 MIN
3.000 MAX
4.500 1.395
162-SA-1 2.125 3.690 NOM 2.500 4.940 1.395
162-SA-2 2.000 4.000 NOM 2.060 4.940 1.395
162-SA-3 2.000 4.000 NOM 2.300 4.940 1.395
