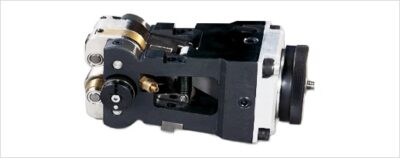

125-SA Tangential Series

125-SA Tangential Series Availability

125-SA 125-SA-1 126-SA 126-SA-1
Brown & Sharpe
x
x
Cono-Matic
Euroturn
x
x
Davenport
x
x
Gildemeister
x
x
Green Lee
Hardinge
x
x
Hydromat
Index
x
x
Mitsubishi
Mori-Say
x
x
National ACME
x
x
New Britain
x
x
Schutte
x
x
Traub
x
x
Tornos Bechler
x
x
Warner Swasey
Wickman
x
x
ZPS
x
x

125-SA Tangential Series Capacities

0-80 to ½-32 1/16-27 NPT to ¼-18 NPT M1.4 x 0.3 to
M12 x 1.75
1/16-28 BSPP to
1/4-19 BSPP
1/16-28 BSPT to
1/4-19 BSPT
1/8-27 NPSM to
1/4-18 NPSM

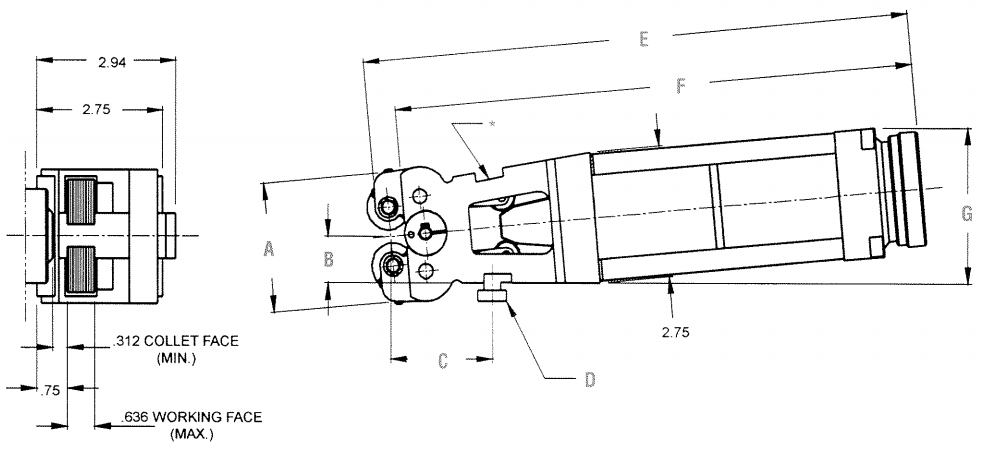

125-SA Tangential Series Dimensions

A B C D E F G
125-SA 3.120 (MAX) 1.000 2.250 NOM 1/4-20 T-BOLT 8.875 8.320 3.000
125-SA-1 3.120 (MAX) 1.180 2.750 NOM M8 x 1.25 T-BOLT 8.875 8.320 3.000
126-SA 3.120 (MAX) 1.000 2.250 NOM 1/4-20 T-BOLT 12.20 11.570 3.300
126-SA-1 2.740 (MAX) 1.180 2.750 NOM M8 x 1.25 T-BOLT 12.20 11.570 3.300

125-SA Tangential Series
