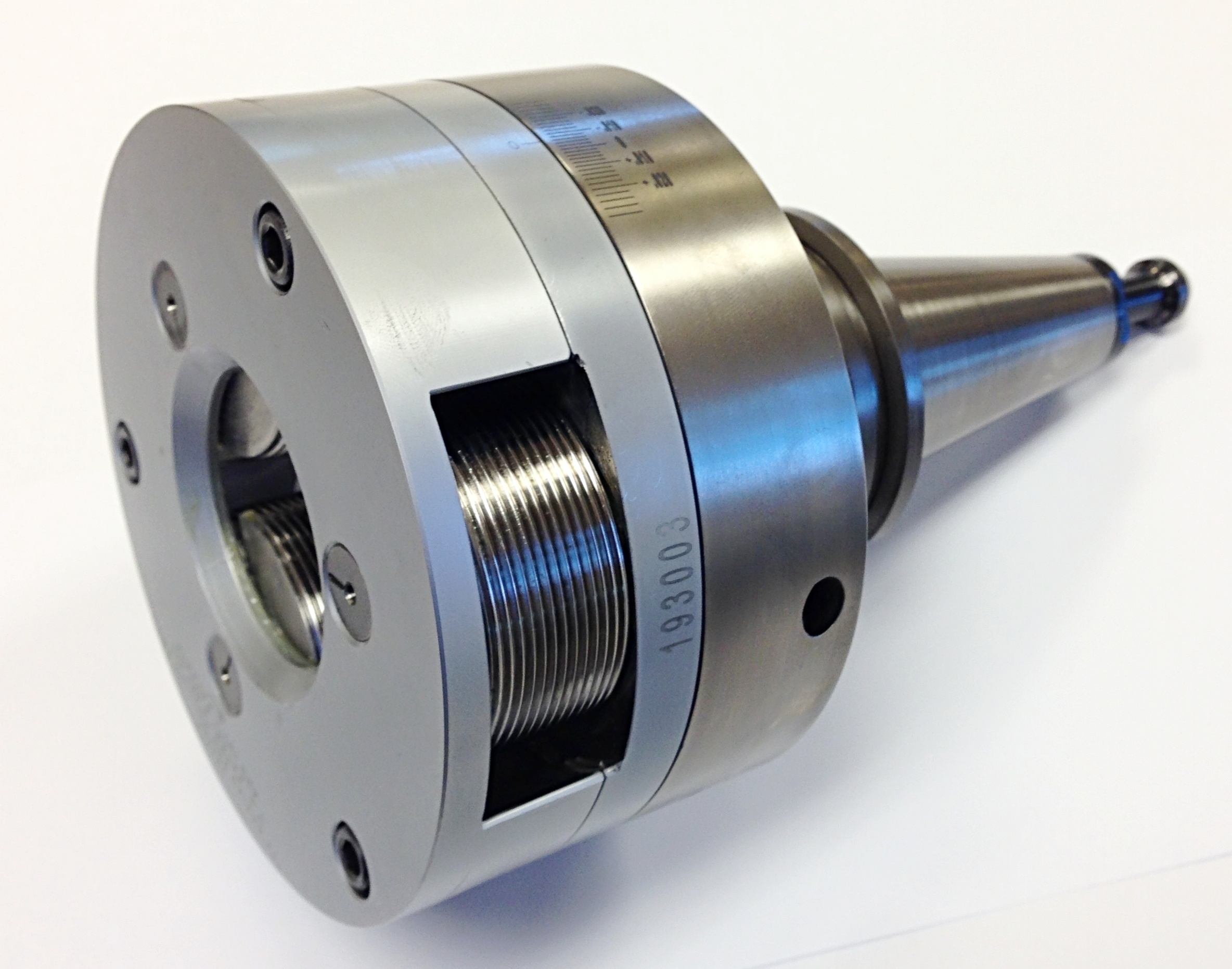

ER 193 End Rolling Attachment

The ER 193 End Rolling Attachment features a front plate with integral standoffs that is more rigid than multi-piece assembly on the F34 head.

The clutch-less, 1-piece Cat40 shank offers increased rigidity and eliminates reset failure mode. Additional advantages include:

  • Fewer wear parts than the F34 head
  • Sealed pitch adjustment gear train with fine-adjust screws
  • Thru-coolant capacity to lube rolls and minimize chip issues with part and rolls
  • Low-friction, ultra-hard coating to increase longevity of wear components
  • 193 ER style thread rolling attachment available with a Cat40 shank and 1.50 diameter shank
  • 193 attachment is designed for compact rigid thread rolling on CNC lathe or mill.
  • Requires precise synchronization of rotational and feed axes of machine to maintain proper rolling geometry.
  • Uses canned threading cycle to feed on to part at proper rate as a function of part pitch – Stop – Reverse to unread off of the part.
  • Most modern CNC machines have this capability – Please verify your machine is capable of doing this.

Download Our Model 193 Series Instruction Manual

ER 193 End Rolling Attachment Capacities

Head OD 4.625″
Length from CAT40 Gage Line 4.230″
Part Capacities Ø1.75 x 1.094 long or
Ø1.094 x 3.750 long or
Ø .532 x 5.375 long

193ER Capacity Thread Sizes

* = LIMITED LENGTH

M12X1 9/16-20
M12X0.75 9/16-22
M12X0.5 9/16-24
M13X1 9/16-28
M13X0.75 9/16-32
M14X1 5/8-18
M14X0.75 5/8-20
M15X1 5/8-24
M15X0.75 5/8-28
M16X1.5 5/8-32
M16X1 11/16-20
M17X1 11/16-24
M18X1.5 11/16-28
M18X1 3/4-16
M20X1.5 3/4-20
M20X1 3/4-28
M21X1.5 13/16-16
M21X1 13/16-20
M22X1.5* 13/16-28
M23X2* 7/8-12
M23X1.5* 7/8-14
M24X2* 7/8-16
M24X1.5* 7/8-20
M25X2* 7/8-28
M25X1.5* 15/16-12*
M26X2* 15/16-16*
M26X1.5* 15/16-20*
M27X2* 1-12*
M27X1.5* 1-16*
M28X2* 1-20*
M28X1.5* 1 1/16-12*
M29X1.5* 1 1/16-16*
M30X2* 1 1/16-18*
M30X1.5* 1 1/16-20*
1 1/8-16*
1 1/8-18*
1 1/18-20*
1 3/16-12*
1 3/16-16*
1 3/16-18*
1 3/16-20*



Watch the ER 193 end rolling attachment at work.
